Color
A color can be displayed and possibly configured with a Color.
Requirements
An Color is a Variable with the presentation Color. To use this presentation, the variable must fulfill the following conditions:
- Type Integer or String
Parameter
| Parameter | Description |
|---|---|
| Encoding | Used encoding for the color, only adjustable for variables of type String |
| Default Values | List with default values that are offered in a selection, only available for variables with Variable Action. Not available if 'xy' encoding is selected |

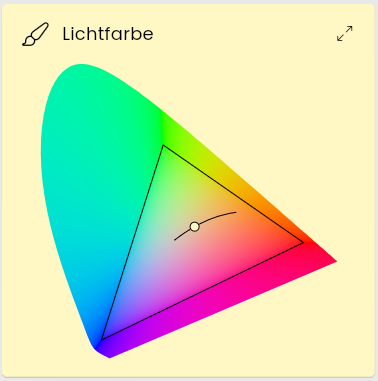

| Color Sapce | The color space from which a color can be selected. This defines a triangle |
| Custom Color Space | List in which the red, green, blue value and white point of a custom color space can be defined. |
| Color Curve | If a color curve is selected, the selection of the color is limited to this |
| Custom Color Curve | A list of coordinates that define the |
Display as legacy profile
If a variable uses the presentation Legacy profile, it is displayed as a color if it also fulfills the following conditions:
- selected Variable profile "~HexColor"
Appearance in Tile Visualization

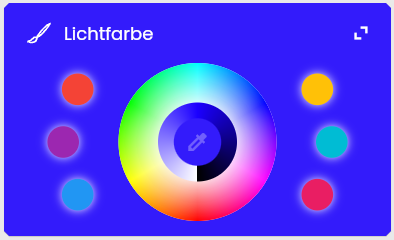

As own Tile with Variable Action
When selecting the pipette in the middle of the circle, a dialog opens to set the color alternatively in detail

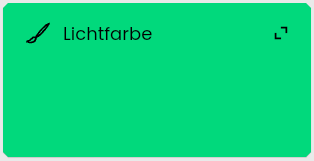

As own Tile without Variable Action
Within a List with Variable Action
When the pen is selected, a dialog opens, analogous to the display as a separate tile.
Within a List without Variable Action
Appearance in the WebFront
With Variable Action

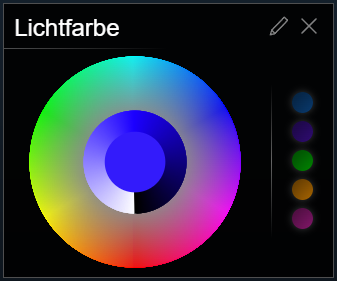

Selecting the brush on the right opens a color selection dialog:
Without Variable Action
