Light
Require: IP-Symcon >= 7.0
In the presentation Light, status, brightness, tuneable white and color can be visualized in a single tile.
Requirements
An Instance can be displayed as light if the following child objects are present:
- Status:
- Meets the conditions of Switch
- selected Variable profile "~Switch"
- Brightness (optional):
- Meets the conditions of Slider
- selected Variable profile whose name begins with "~Intensity."
- Tuneable White (optional):
- Meets the conditions of Tuneable White
- Color (optional):
- Meets the conditions of Color Selection
At least one optional variable must exist.
Appearance in Tile Visualization
As own Tile

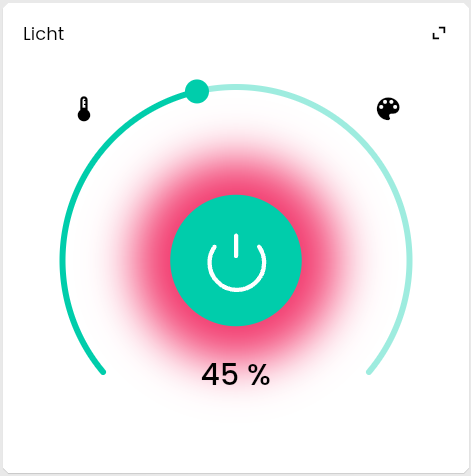

![Light as Tile](/media/pages/service/dokumentation/komponenten/objekt-darstellung/licht/f4788a0ed0-1721983697/objektdarstellung-licht-kachel.png)

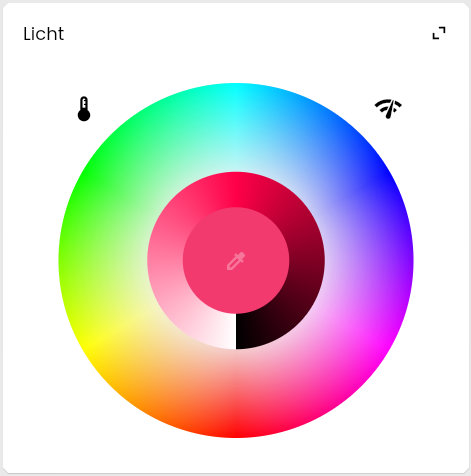

![Color Selection of Light as Tile](/media/pages/service/dokumentation/komponenten/objekt-darstellung/licht/b071cafec8-1721983697/objektdarstellung-licht-kachel-farbe.png)
Within a List
In the list view, the visualization falls beck to the presentation List.

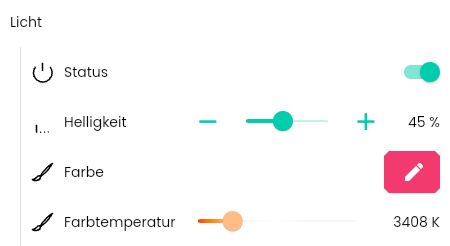

![Light in List](/media/pages/service/dokumentation/komponenten/objekt-darstellung/licht/2686d21bb0-1721983697/objektdarstellung-licht-liste.png)
Appearance in the WebFront
This presentation is not supported by the WebFront. Instead, the instance is displayed as List.
