Documentation

TestCenter

Require: IP-Symcon >= 5.0

Generates a Test Center in which all switchable status variables of the instance can be switched. The operating elements are based on the type and profile of the variables and are based on the switching elements of the WebFront.

Warning

This item is not supported by the Legacy Console. If a module with this element is opened in the legacy console, the TestCenter is not displayed.

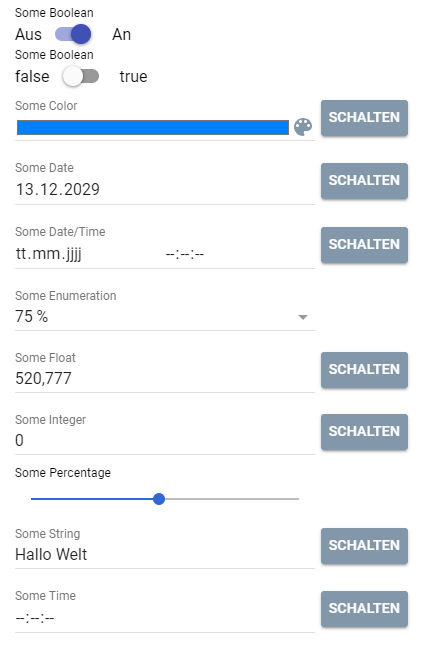

Example

Parameter

Parameter Description
caption (optional) (default: "") Visible caption (since IP-Symcon 7.2)
enabled (optional) (default: true) If true, the Test Center can be used, otherwise it is displayed as deactivated (since IP-Symcon 5.2)
name (optional) Name of the Test Center
type TestCenter
visible (optional) (default: true) If true, the Test Center is visible, otherwise it is invisible (since IP-Symcon 5.2)

Example

{
     "type": "TestCenter"
 }
